Gift Milestone — TikTok Live Gifts overlay
Gift Milestone lays session diamond goals out as a checklist — empty boxes until each tier is reached, then a ✔. No confetti, just a clear ledger for steady, calm streams.
Prerequisite: install and run TKStudio (Windows desktop) and connect it to the TikTok LIVE room you are streaming. This article stands on its own — from configuration to OBS / TikTok LIVE Studio setup.
When to use it
In ASMR, study-with-me, or long talk sessions, flashy bars break the mood — this checklist sits quietly in a corner while viewers see exactly 'how far to the next tier' and chip in at their own pace. Ascending tiers (1k / 5k / 10k) turn each ✔ into a small ritual.
Event days benefit too: splitting one big goal into tiers reads as 'progressive unlocks' rather than a single endless bar.

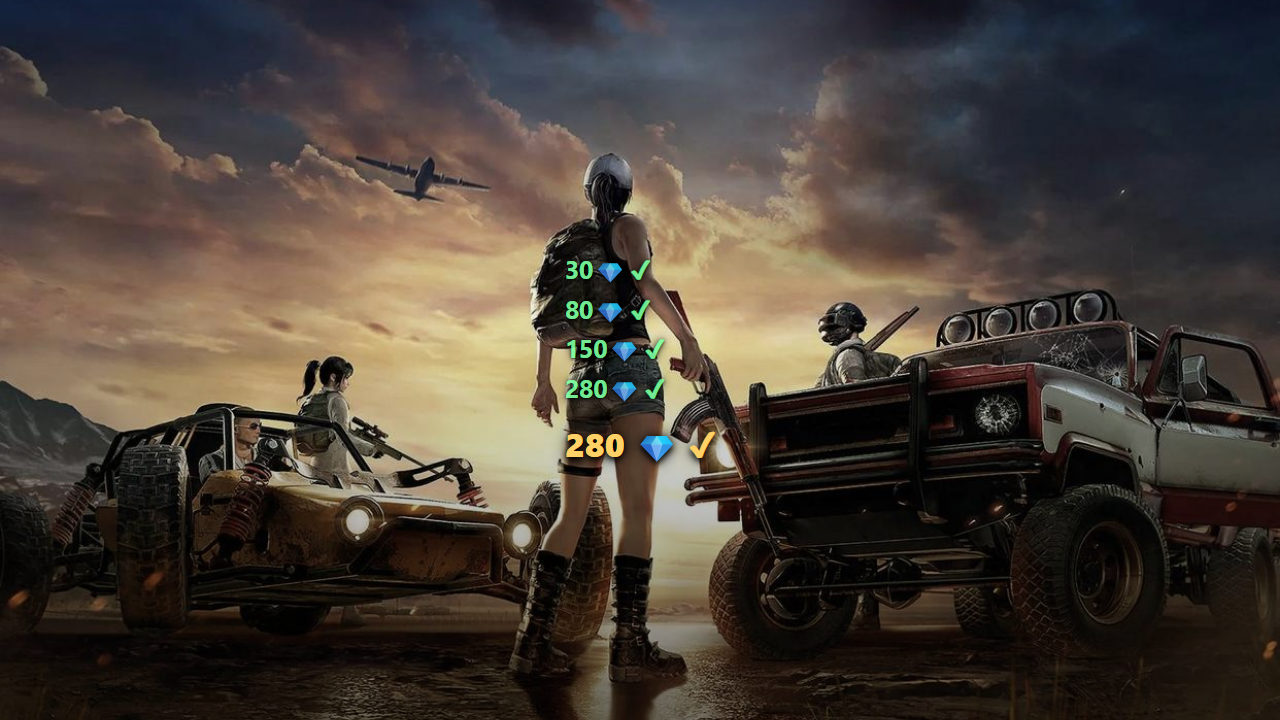

The demo video above shows Gift Milestone in action (both EN and ZH versions), and the cover previews the layout; the plugin page's live preview is the source of truth.
Configuration
Configure everything on the plugin page in TKStudio — tune on the left, preview live on the right, then hit Generate link. The table below lists every parameter in panel order, its default, and practical gotchas.
| Parameter | Description | Default | Gotchas |
|---|---|---|---|
title | Heading text on top of the overlay. | — | Leave empty to hide the heading row entirely. |
fontSize | Font size in pixels. (14–40) | 22 | Works together with Scale: set font size first, then scale the whole overlay. |
size | Overall overlay scale (1–10). (1–10) | 5 | You can still resize in OBS / LIVE Studio afterwards; avoid stacking both too small. |
milestones | Goal values; checked off as they are reached. | — | Use ascending steps (1k / 5k / 10k); huge gaps stall at half-way forever. |
How to use it in OBS
This section assumes you have generated and copied the link: open TKStudio → pick Gift Milestone → choose the room and tune parameters → Generate link → Copy link. Keep TKStudio running while you stream — the overlay link talks to the local TKStudio process.
Add the link to OBS as a Browser Source:
- In the Sources dock click + → Browser.
- Paste the copied link into URL; set width / height to your canvas (usually 1920×1080).
- Leave Shutdown source when not visible unchecked so the overlay never pauses.
- Click OK, then drag / resize the source into position.
Placement: A quiet top corner at small font; pick either this or a gift-task bar so progress info doesn't compete.
- The page background is transparent out of the box — do not override it with custom CSS.
- After changing parameters, Generate link again and refresh the Browser Source (or update its URL).
- One plugin = one Browser Source; add more sources for more overlays.
How to use it in TikTok LIVE Studio
If you go live with TikTok LIVE Studio, the approach is the same — a browser layer, nearly identical to OBS:
- Open your scene / layer list in TikTok LIVE Studio.
- Add a Browser layer.
- Paste the link from Copy link into the URL field.
- Match the canvas size (e.g. 1920×1080) and keep the background transparent.
- Position the layer, go live, and send a test chat / gift to confirm it animates.
- TKStudio and TikTok LIVE Studio must run on the same PC (the link points to 127.0.0.1).
- Blank overlay? Make sure TKStudio is connected to the right room, then re-copy the link and refresh the layer.
- After regenerating a link, refresh or re-create the browser layer.
Related plugins
Browse all plugin docs or try them live in the TKStudio marketplace.
