Gift Task Warm — TikTok Live Gifts overlay
Gift Task Warm renders the same task board in a pink-to-peach gradient — a warm, intimate palette for emotional streams, female-skewed rooms, and late-night sessions.
Prerequisite: install and run TKStudio (Windows desktop) and connect it to the TikTok LIVE room you are streaming. This article stands on its own — from configuration to OBS / TikTok LIVE Studio setup.
When to use it
Late-night radio, heart-to-heart calls, beauty streams — a cold progress bar feels clinical. The warm gradient blends with soft lighting so goals feel gently reached together. Holiday events (Valentine's, Galentine's) need zero re-theming.
Swap between Warm / Cool / Dual per stream theme: one workflow, three skins.

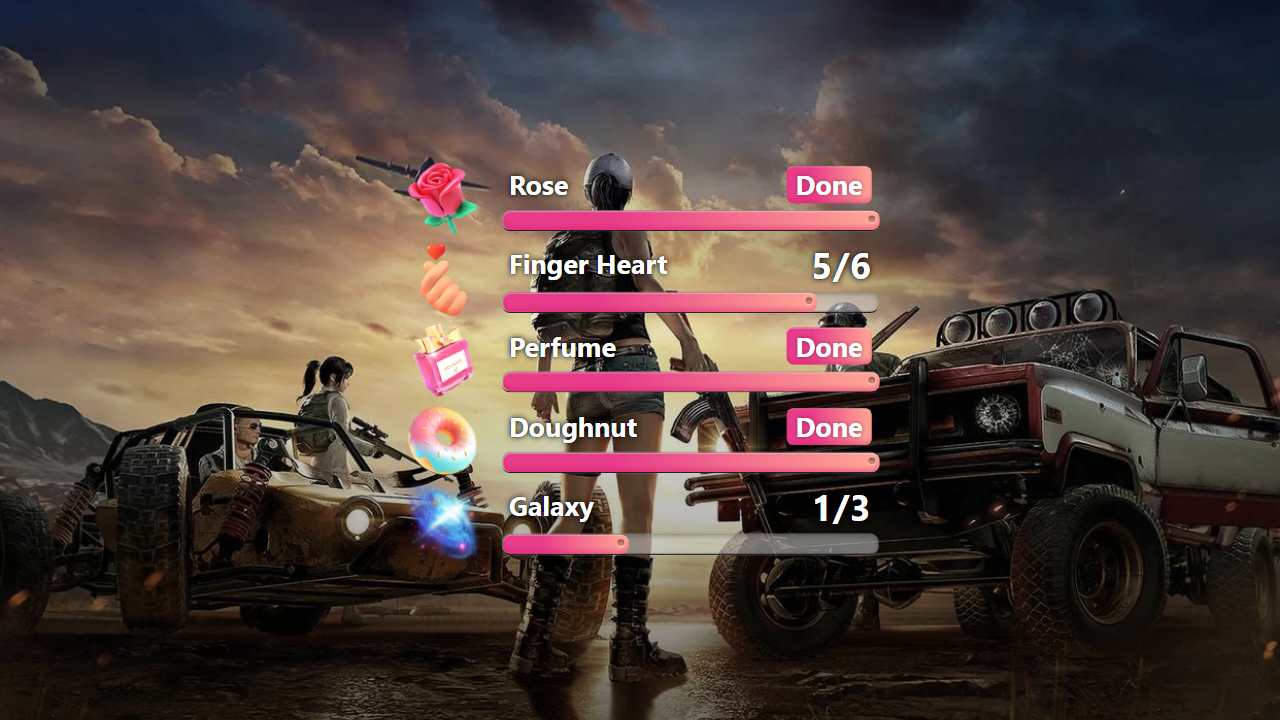

The demo video above shows Gift Task Warm in action (both EN and ZH versions), and the cover previews the layout; the plugin page's live preview is the source of truth.
Configuration
Configure everything on the plugin page in TKStudio — tune on the left, preview live on the right, then hit Generate link. The table below lists every parameter in panel order, its default, and practical gotchas.
| Parameter | Description | Default | Gotchas |
|---|---|---|---|
progresswidth | Progress bar (or label) width in pixels. (60–500) | 336 | Widen for long task names to avoid wrapping; on the ring variant this is label width. |
days | Days to keep task progress on this device. (0–30) | 1 | 0 = reset every open; 2+ persists locally. Editing tasks or days clears saved progress. |
size | Overall overlay scale (1–10). (1–10) | 5 | You can still resize in OBS / LIVE Studio afterwards; avoid stacking both too small. |
tasks | Task list: gift + target count (+ optional reward note). | — | Editing tasks clears saved progress — finalize before going live. 3–5 tasks is the sweet spot. |
How to use it in OBS
This section assumes you have generated and copied the link: open TKStudio → pick Gift Task Warm → choose the room and tune parameters → Generate link → Copy link. Keep TKStudio running while you stream — the overlay link talks to the local TKStudio process.
Add the link to OBS as a Browser Source:
- In the Sources dock click + → Browser.
- Paste the copied link into URL; set width / height to your canvas (usually 1920×1080).
- Leave Shutdown source when not visible unchecked so the overlay never pauses.
- Click OK, then drag / resize the source into position.
Placement: Bottom or side; warm tones blend into soft, light scenes — narrow the bar on dark backgrounds to tone it down.
- The page background is transparent out of the box — do not override it with custom CSS.
- After changing parameters, Generate link again and refresh the Browser Source (or update its URL).
- One plugin = one Browser Source; add more sources for more overlays.
How to use it in TikTok LIVE Studio
If you go live with TikTok LIVE Studio, the approach is the same — a browser layer, nearly identical to OBS:
- Open your scene / layer list in TikTok LIVE Studio.
- Add a Browser layer.
- Paste the link from Copy link into the URL field.
- Match the canvas size (e.g. 1920×1080) and keep the background transparent.
- Position the layer, go live, and send a test chat / gift to confirm it animates.
- TKStudio and TikTok LIVE Studio must run on the same PC (the link points to 127.0.0.1).
- Blank overlay? Make sure TKStudio is connected to the right room, then re-copy the link and refresh the layer.
- After regenerating a link, refresh or re-create the browser layer.
